Overview
Quick Details
- Place of Origin:
-
Henan, China, China
- Brand Name:
-
K2
- Model Number:
-
YC069
- Type:
-
Insulation Tape
- Material:
-
PVC
- Application:
-
High Voltage
- Rated Voltage:
-
600V
- Tensile Strength:
-
20 N/cm
- Product name:
-
PVC Electrical Insulation Tape
- Color:
-
Customized,typically color:Black , Blue, Green,Yellow,Red,White
- Feature:
-
Flame Retardant
- Advantage:
-
High Adhesive
- Usage:
-
Insulation Protection
- Certification:
-
RoHs and Reach
- Working Temperature:
-
-10℃~90℃
- Thickness:
-
0.1mm~0.20mm and Customized
- Sample:
-
Avaliable
Product Certification
- SGS Certified.
Supply Ability
- Supply Ability:
- 200000 Square Meter/Square Meters per Month
Packaging & Delivery
- Packaging Details
- PVC fireproof insulation adhesive tape Chinese manufacture
Match customer's width and length to the appropriate outer packing.
- Port
- QingDao / Shanghai / Tianjin
- Picture Example:
-
- Lead Time :
-
Quantity(Rolls) 1 - 2000 2001 - 5000 5001 - 10000 >10000 Est. Time(days) 30 30 30 To be negotiated
Trust Is The Basis Of A Fluent Transaction
If you decide to buy from us, please give us your trust and understanding as well. Whenever there's a problem, question or need, we would do our best to help with. Thank you O(∩_∩)O
You May Like
Product Description

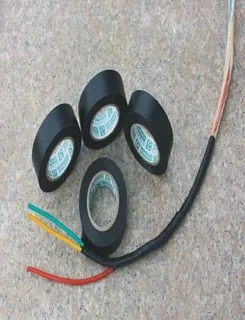

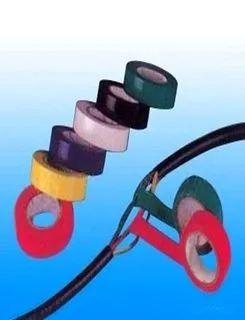

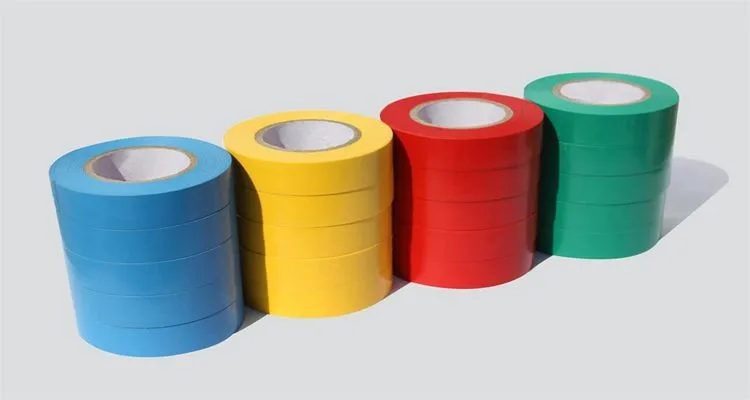

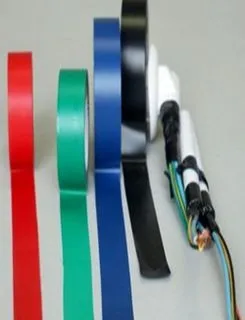

PVC Electrical Insulation Tape Flame Retardant Black
Shiny Flame Retardant Adhesive PVC Electrical Insulation Tape For Cables Wrapping
General used PVC electrical tape is a thin premium grade plasticized soft PVC film coated with an aggressive rubber base adhesive glue with good characteristics. It is highly conformable and unaffected by most chemicals and moisture.
Product Name | PVC Electrical Insulation Tape | ||||
Materials | PVC Film | ||||
Rubber | Pressure sensitive rubber | ||||
Width | 19mm ~1250mm , as reqirement | ||||
Length | 9m-35m, as customers' requests | ||||
Color | Black , Green , Blue , Yellow , Red , White, as requrest | ||||
Feathers | ・Flame Retardant; ・Easy un-wind and easy tear; ・No residue glue; ・Abrasion resistant; ・Midoni resistant; ・Good performance and aging resistance; ・Flexible and conformable ・Rohs approved | ||||
Application | ・Ideal for cables insulation wrapping and splicing ・Excellent for cables color marking. ・Fixing taping coiled cables or insulating exposed conductors ・Cable harnessing, insulation, abrasion protection for OEM companies in household appliances market | ||||
Thickness | Tensile strength | Elongation at break | Adhesion to steel | Adhesion to backing | Voltage resistance | Temperaure resistance |
0.11mm | 18N/cm | ≥150% | 1.5 N/cm | 1.4 N/cm | 600V | -10~90℃ |
0.13mm | 20N/cm | ≥170% | 1.5 N/cm | 1.5 N/cm | 600V | -10~90℃ |
0.15mm | 22N/cm | ≥180% | 1.5 N/cm | 1.5 N/cm | 600V | -10~90℃ |
0.18mm | 24N/cm | ≥200% | 1.5 N/cm | 1.5 N/cm | 600V | -10~90℃ |
0.20mm | 26N/cm | ≥200% | 1.5 N/cm | 1.5 N/cm | 600V | -10~90℃ |
About Us
✔ Youcheng Tech.
was founded in 1997 as a professional adhesive products production enterprise. The company is located in Henan province, covering an area of more than 36,700 square meters, existing workers more than 160 people. Our main products are: PVC electrical insulation tape, PVC floor marking tape, PVC wire harness tape, PVC pipe wrapping tape, PVC duct tape, PVC protection tape, PVC easy tear tape, flame retardant tape and PVC translucent tape etc,.
✔ Certificate Authentication
With the strong technical force, excellent manufacturing equipment, complete testing means and perfect quality assurance system. Youcheng Tech. has passed the ISO9001 quality system certification, RoHS environmental management system certification, EU REACH and IATF-16949 certification etc,.
✔ Our Market
Rely on a strong production capacity of more than 50 millons square meters for each year and advanced management system, we have a certain market share both in China and abroad. At present, we have become one of export-oriented Chinese processing enterprise and sold our products in all 90% countries and regions across the world. There are North America, the European Union, the Middle East, Austrilia, Russia, Japan and other regions. In the past 20 years, with its high quality products, competitive price, timely delivery, and thoughtful service, we have made outstanding achievements in various.
✔ Company Milestone
▲ 1997 Youcheng Tech. Corp., Ltd Founded.
▲ 1998 The first coating line was installed.
▲ 2009 The new factory was completed and put into use, and covers an area of more than 36,700 m².
▲ 2012 Won the title of provincial engineering center.
▲ 2014 Zhengzhou Branch Established.
▲ 2016 Installed calendering machine.
▲ 2017 Installed high-speed coating line.
▲ 2019 Puyang Branch Established.
Workshop
After more than 20 years of steady development, the company now has advanced equipment in the manufacturing facility including 1 PVC Calendar film machine, 4 coating lines, 1 paper core making machine, 16 slitting machine and 15 automatic packaging machine etc,.
Packing & Shipping
Customer Visiting
Youcheng Tech. always adhere to the "technology in order to survive, to the quality strives for the development" concept, to "strive to do better" banner, with "the speed and accuracy of" as the goal, to "people-oriented, serving society". Welcome to visit our factory any time.
FAQ
Q: Can I get free sample?
A: Yes. Free sample can be provided. But if your size is not on our stock list, it may take more or less 7 days for production. And the freight is on your part, hope you can understand. Thank you.
Q: Do you accept customized order?
A: Yes. Any customized requirement including color, size, package and logo etc. are welcomed.
A: Yes. Any customized requirement including color, size, package and logo etc. are welcomed.
Q: What's your MOQ?
A: It depends. but small order is also acceptable for the purpose of long time cooperation.
A: It depends. but small order is also acceptable for the purpose of long time cooperation.
Q: How do you ensure the quality of your products?
A: At Youcheng Tech. you receive products under guarantee of ISO9001, RoHS.
Q: What are your best lead-times?
A: Immediately shipments are available for stock adhesive tapes. Otherwise we need more or less 25 working days for production.
Q: How can you make sure that my money is safe with you?
A: As an Alibaba Trade Assurance member, your funds are under protection of Alibaba group. Payment will not be released to vendor until buyer confirms receipt and good material of delivery.
